Hi,
I’m trying to generate a Job Description document from HTML using Plumsail’s Convert HTML to DOCX action.
Here’s my goal:
-
I have a header image and a footer image that should span the full page width (US Letter 8.5" × 11").
-
The header should appear at the top of every page, the footer at the bottom of every page.
-
The JD body text should have proper left/right margins so it doesn’t stick to the edges.
What I’ve done so far:
-
Uploaded the header image (
header.png) and footer image (footer.png) to SharePoint. -
Converted them to Base64 in Power Automate and included them in the HTML using
<img>tags inside<header>and<footer>elements. -
Wrapped the JD content in a
<div>with padding for margins. -
Used Plumsail “Convert HTML to DOCX” to create the document.
The problem:
-
In the generated DOCX, the header image appears appears misaligned.
-
Even the footer isn’t aligned well.
-
Header only shows on the first page, footer only shows on the last page.
-
Body text stretches to the left and right margin when I select the margin in Plumsail’s action to be “0 0 0 0”
What I need help with:
-
Correct HTML/CSS or Plumsail settings to make the header/footer align properly for US Letter size (8.5" × 11").
-
Ensure the header and footer repeat on all pages.
-
Maintain consistent left/right margins for the body text while keeping header/footer full width.
Here’s an example screenshot of the issue:

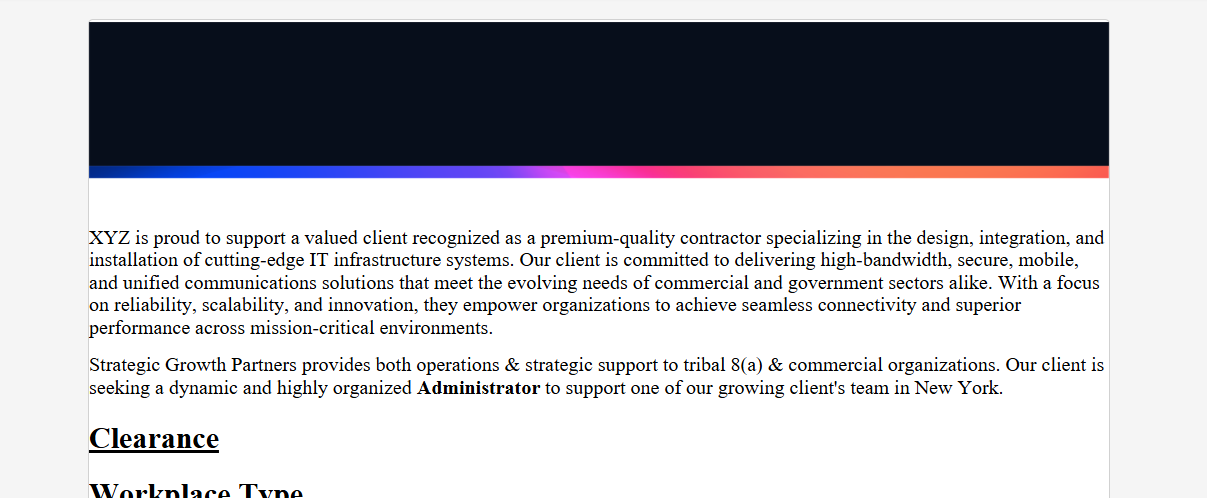

In the above image the text of the document are right in place as I need, but the Header is not.

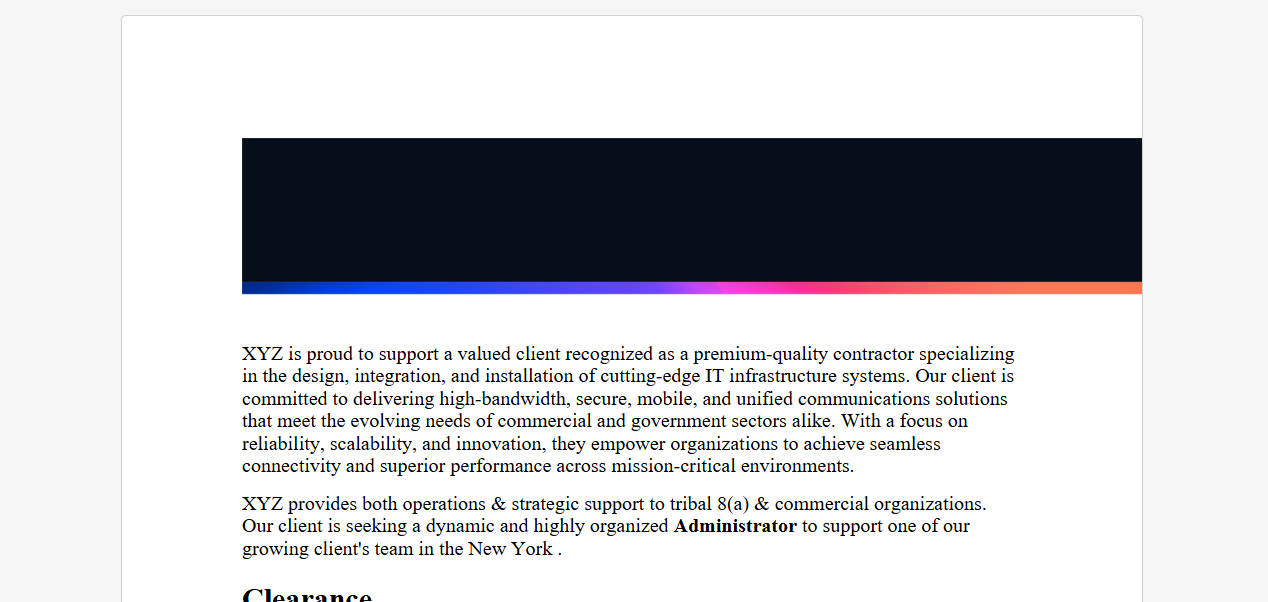

Now, in this image the Header is in place but the texts have stretched to the margins.
Any advice, HTML fix, or tips to achieve this would be greatly appreciated.
Thanks!
