Hello,
I have a simple wizard and I am trying to figure out a way to achieve the following:

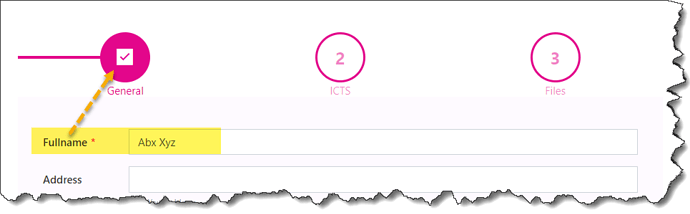

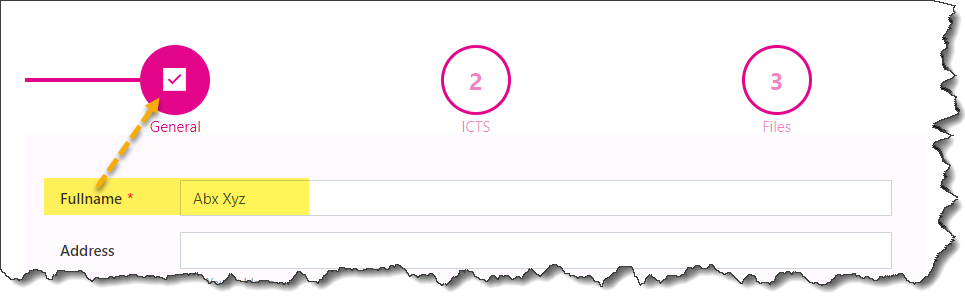

Example of what I want to achieve:
Here Fullname is required, it has been added without errors - then when I click on tab2, tab1 will automatically be converted to the icon.
Any help will be appreciated!
Thanks in advance.
Another cool idea is to make the wizard green on step change.... Not done this yet but will do this in my second version of forms
@Margo @Nikita_Kurguzov
Hi, Any update on this?
Thanks
Dear @asmita_adh,
Not all team members can provide support for Forms question, only me and @Margo are familiar with the product enough.
As for this case, it should be possible with JavaScript, you can try something like this:
fd.rendered(function () {
//update icons on load
var wizard = fd.container('Wizard1');
updateIcons(wizard.widget.activeTabIndex);
//detect change and update icons
fd.container('Wizard1').widget.$on('on-change', function(prevIndex, newIndex) {
updateIcons(newIndex);
});
function updateIcons(index){
var icons = [];
for(var i = 0; i < index; i++){
icons[i] = 'BoxCheckmarkSolid';
}
fd.container('Wizard1').icons = icons;
}
});
Here's an example - WizardCheckmark
Hi @Nikita_Kurguzov,
Thank you for the reply.
This works well when you are following the steps from say 1 to 3. If users were to fill the form in random order, how can we achieve the same as above? Because now, clicking on 3 after 1, gives me a checkmark on 2 where as I have not edited the fields there at all.
Also another "problem":

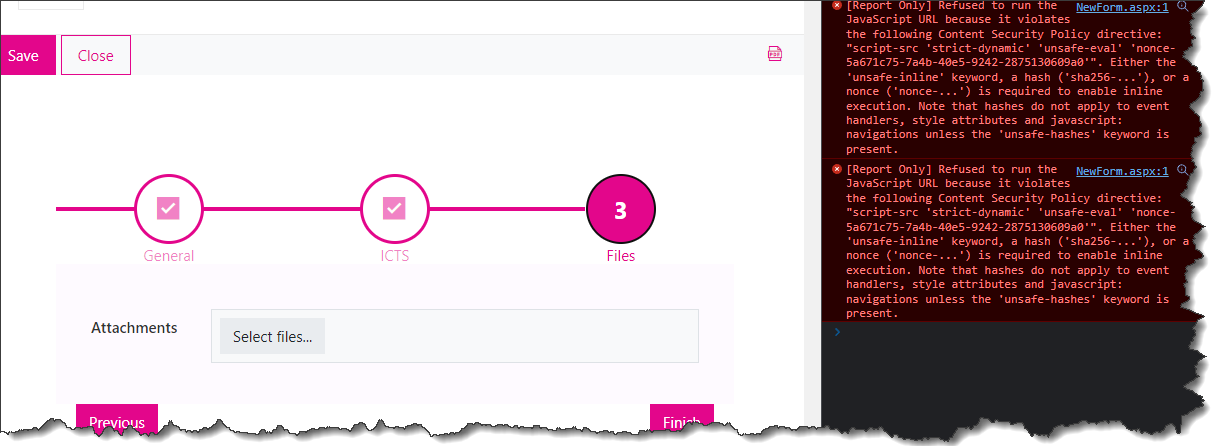

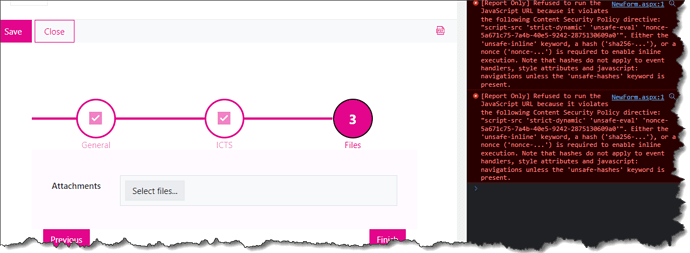

When I use fd.container('Wizard1').widget.activateAll() the console gets full of errors as follow:
Dear @asmita_adh,
The JavaScript to check all fields would be quite a bit more complex - the code I've posted above relies on the Wizard's functionality to self-check required fields, you normally cannot progress to Step 3, if you didn't complete all the required fields in Step 2, etc.
If the fields are not required, and you still want to check them before adding the checkmark, you'll need to manually check each field in each step.
Hi @Nikita_Kurguzov,
Is there a dynamic way to read all fields in a tab? Something like,
fd.container('Wizard1').widget.tabs[0].fields ?
Or a way to validate fields in the tab?
Also, what about the errors in the console? Is that a normal behavior?
Dear @asmita_adh,
The fields are automatically validated when you switch to the next step.
Not sure what causes the errors, might be specific to your form or JavaScript, as I am unable to reproduce the issue. If it doesn't impact the functionality - shouldn't be a problem.
As for accessing fields under a certain step, that is possible, you can access them like this:
fd.rendered(function () {
//all fields on the form
const fields = fd.fields();
//update icons on load
var wizard = fd.container('Wizard1');
updateIcons(wizard.widget.activeTabIndex);
//detect change and update icons
fd.container('Wizard1').widget.$on('on-change', function(prevIndex, newIndex) {
updateIcons(newIndex);
});
function updateIcons(index){
var icons = [];
for(var i = 0; i < index; i++){
var complete = true;
for(var y = 0; y < fields.length; y++){
//loop through all fields looking for descendats of specific tabs
if(isDescendant(fd.container('Wizard1').widget.tabs[i].$el, fields[y].$el)){
if(!fields[y].value){
complete = false;
}
}
}
if(complete){
icons[i] = 'BoxCheckmarkSolid';
}
else{
icons[i] = 'Error';
}
}
fd.container('Wizard1').icons = icons;
}
});
// Check if `child` is a descendant of `parent`
const isDescendant = function (parent, child) {
let node = child.parentNode;
while (node) {
if (node === parent) {
return true;
}
// Traverse up to the parent
node = node.parentNode;
}
// Go up until the root but couldn't find the `parent`
return false;
};
This will work for most field types, but might not work for some.
Here's the example form - WizardCheckmark (copy 1)
Dear @asmita_adh,
Yes, instead of fd.fields() you can try:
//all fields on the form
var fields = Object.keys(fd.data());
fields.pop();Thanks for all your help @Nikita_Kurguzov !
I did it in a slighty different way to get all the fields since fd.data only seems to terun text and multiline fileds.
For refernce: In the above code i changed to the following:
const fields = fieldsInTab(i);
function fieldsInTab(tabIndex) {
var titles = [];
var fields = fd.container('Wizard1').widget.tabs[tabIndex].$children
for (var i = 0; i < fields.length; i++) {
if (!fields[i].$el.hidden) {
titles.push({
dom: fields[i].$el,
value: fields[i].$children[0].value
})
}
}
return titles;
}
